Ronstan Series 20 ball Bearing Block - Triple - 2-Axis Shackle head [RF20302]

Ronstan Series 20 ball Bearing Block - Triple - 2-Axis Shackle head [RF20302]

  • Sale
  • $44.86
  • $52.77
  • 5 available

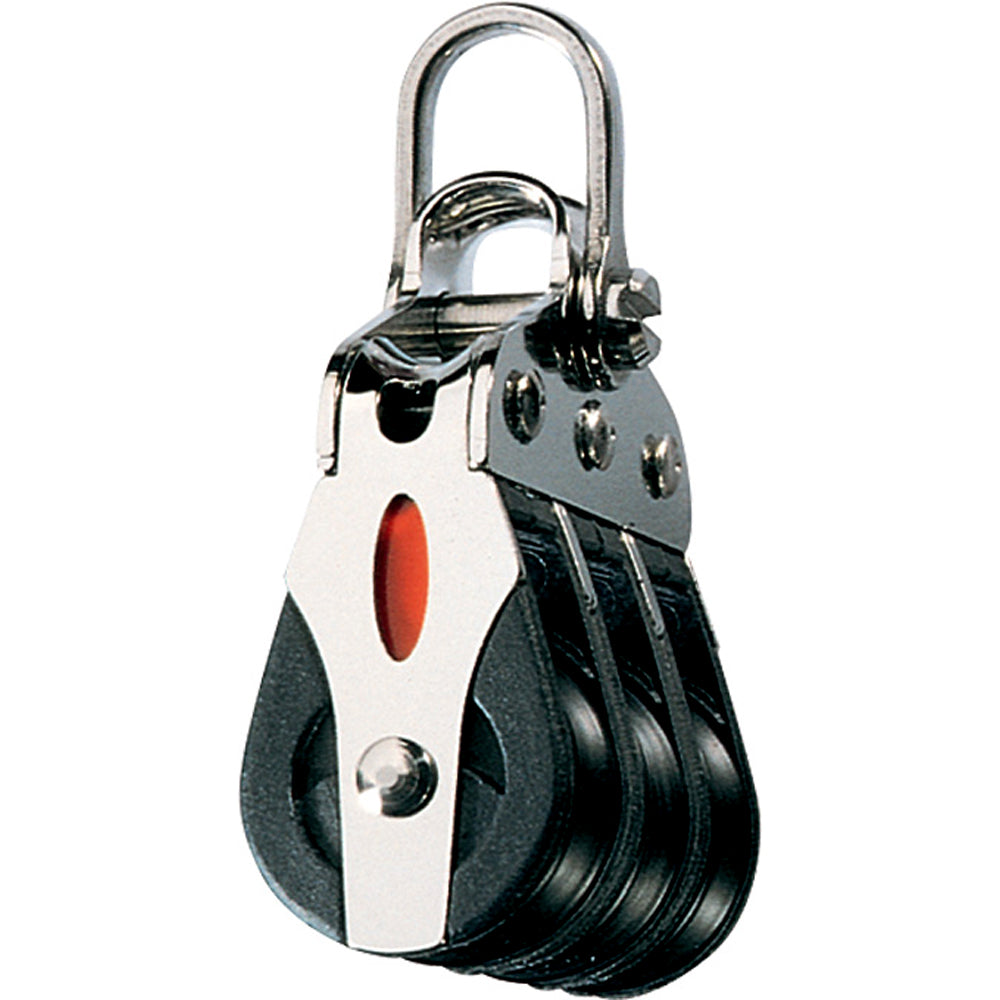

Series 20 Ball Bearing Block - Triple - 2-Axis Shackle Head

Features:

  • Low friction
  • High static and dynamic load capacity
  • Lightweight
  • Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
  • Two-Way head can be fixed at 0° or 90°


Applications:
  • Dinghy control lines
  • Dinghy vangs
  • Cunninghams
  • Traveller controls


Materials:
  • Stainless steel ball bearings
  • UV Stabilized Acetal sheave
  • Grade 316 stainless steel load strap and head fitting
  • Impact and UV resistant, fiber reinforced Nylon cheeks


Specifications:
Sheave Ø:t20mm(3/4")
Max. Rope Ø:t6mm(1/4")
PinØ: 4mm(5/32")
M.W.L.:t400kg(880lbs)
B. L.:t850kg(1,870lbs)
Weight:t62g(2.2oz)
